Maypole Universal Sun Canopy 2.5m X 2.5m Sun Canopy MP9513 GREY

Maypole Universal Sun Canopy 2.5m X 2.5m Sun Canopy MP9513 GREY - Image 2

Maypole Universal Sun Canopy 2.5m X 2.5m Sun Canopy MP9513 GREY - Image 3

Maypole Universal Sun Canopy 2.5m X 2.5m Sun Canopy MP9513 GREY - Image 4

Maypole Universal Sun Canopy 2.5m X 2.5m Sun Canopy MP9513 GREY - Image 5

Maypole Universal Sun Canopy 2.5m X 2.5m Sun Canopy MP9513 GREY -Hiking N Travel Sales 9513 awning

Maypole Universal Sun Canopy 2.5m X 2.5m Sun Canopy MP9513 GREY

Original price was: £99.99.Current price is: £69.99.

SKU: Y2FTC 1787701813500335892 Categories: Campervan/Motorhome Awnings, Driveaway Awning Accessories Tag: Maypole Leisure

100% Quality Promise
Product guarantee 100% satisfaction
The quality solution for all your needs.
Safe Shopping Guaranteed

Description
Reviews (0)

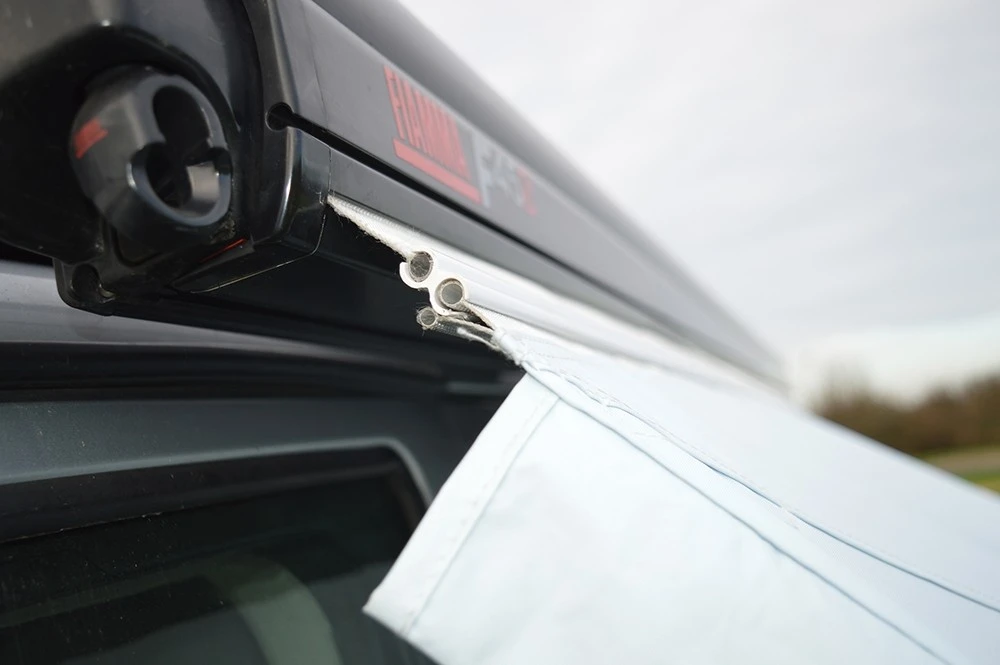

MP9513 2.5m x 2.5m Sun Canopy. Will fit any vehicle with a 6mm or 4mm awning rail between a height of 1.6m to 2.5m. Camper van essentials

MP9513 Universal sun canopy will fit any vehicle with a 6mm or 4mm awning rail between a height of 1.6m to 2.5m
Unique dome shape provides quick and easy extra space (W2.5m, L2.5m, Max H2.5m)
Highly water resistant (3000mm)
Adjustable steel legs for uneven ground
Strong plastic feet prevent sinking into soft ground for maximum stability
5 guy ropes and with pegs for extra stability
Suitable for: camper van VW T2/T25/T3/T4/T5/T6, caravans, motorhomes and vans

1INSTRUCTION MANUALPlease read this instruction manual before fitting thisSun Canopyto yourvehicle.Followtheseinstructionscarefully and keepforfuturereference.UNIVERSAL SUN CANOPY: MP9513

2WARNING –GENERAL SAFETY •Not to be used in strong winds and extreme weather conditions•Do not drive with the Sun Canopy attached to your vehicle•If using stepladders or a platform to fit this sun canopyyou will be working at height & should carefully follow the stepladder/ platform manufacturer’s safety instructions. You should not attempt to fit the sun canopyfrom the ladder but only to use the ladder if required to assist people on the ground. CARE OF YOUR SUN CANOPY•Allow material to dry completely before storing in the storage bag provided.•Remove dirt with a soft sponge and warm water. DO NOT use detergent.•DO NOT expose to sparks, flames or other sources of ignition.CONTENTSSun Canopy x 1Steel Leg Poles x 3Fibreglass roof poles x 2Plastic spike caps x 3Guy Lines x 5Guy Pegs x 12Carry Bag x 1

3FITTING INSTRUCTIONSRecommended 2person assembly.•Open the suncanopy and carefully insert either the 4mm or 6mm beading strip into the full length of the awningchannel on your vehicle.•Pre assemble each steel legin order 1 to 5according to the pre labelled components.•Draw out the canopyaway from the vehicleand insert asteellegpole into the middle eyelet. Slide a plasticcap over thetop spike to hold theCanopy in place during windy conditions. Pegthe foot into the ground with 2 pegs. Loosely secure the middle leg with a guy ropeand peg.•Repeatthe process for the 2 outsidelegpoles. The Sun Canopy should now support itself as show below:•Assemble the 2 fibreglass roof poles.•From the front corner of the Sun Canopy, insert a roof pole through theroof sleeves. Thenensureit is securely fixed into bothcorner pocketsas shownbelow:

4•Repeat the process with a second roof pole to form a cross shape in the middle of the canopy. •Tie the roof poles together at the middle point of the cross with the straps provided. From underneath the roof;push the roof polesupwards maximising the length of the poles. This will create a dome shape as shown below:•Adjust the height of each leg to suit the ground level to achieve a level height. It is recommended the height of each leg should be approximately the same levelas the awning channel on the vehicle. Adjustment can be madeby using the leg pole adjuster as shown below:

5•Once you have achevied the correct height tension each guyropeusing the guy adjusters as shown below:•Securely peg each foot & guyropeat 45 degrees away from the leg polesto achieve maximum stability. Technical Manager Maypole Ltd December 2018Email:sales@maypoleltd.co.ukWeb:www.maypole.ltd.uk
